In the realm of VMware environments, does the configuration of CPU cores and sockets truly impact virtual machine performance, or is it merely a matter of software licensing nuances? The answer is a resounding yes; the way you configure your virtual CPUs (vCPUs) can significantly influence performance and resource allocation within your virtualized infrastructure. This article delves into the intricacies of CPU cores and sockets within VMware, offering insights into best practices for optimal configuration.
The landscape of x86 architecture has witnessed a continuous evolution, and the terminology surrounding it, especially concerning CPUs, has undergone a parallel transformation. Understanding the distinctions between sockets and cores, and how they are presented within a virtualized environment, is crucial for maximizing the efficiency of your VMware infrastructure. Within a typical VMware environment, you'll find options to configure the number of vCPUs, as well as the number of "cores per socket." This flexibility is powerful, but requires understanding to harness correctly.
| Feature | Description | Impact |
|---|---|---|
| CPU Sockets | A physical connector on the motherboard that houses a physical CPU. | Determines the physical processing capacity of the host server. Each socket can hold a single multi-core processor. |

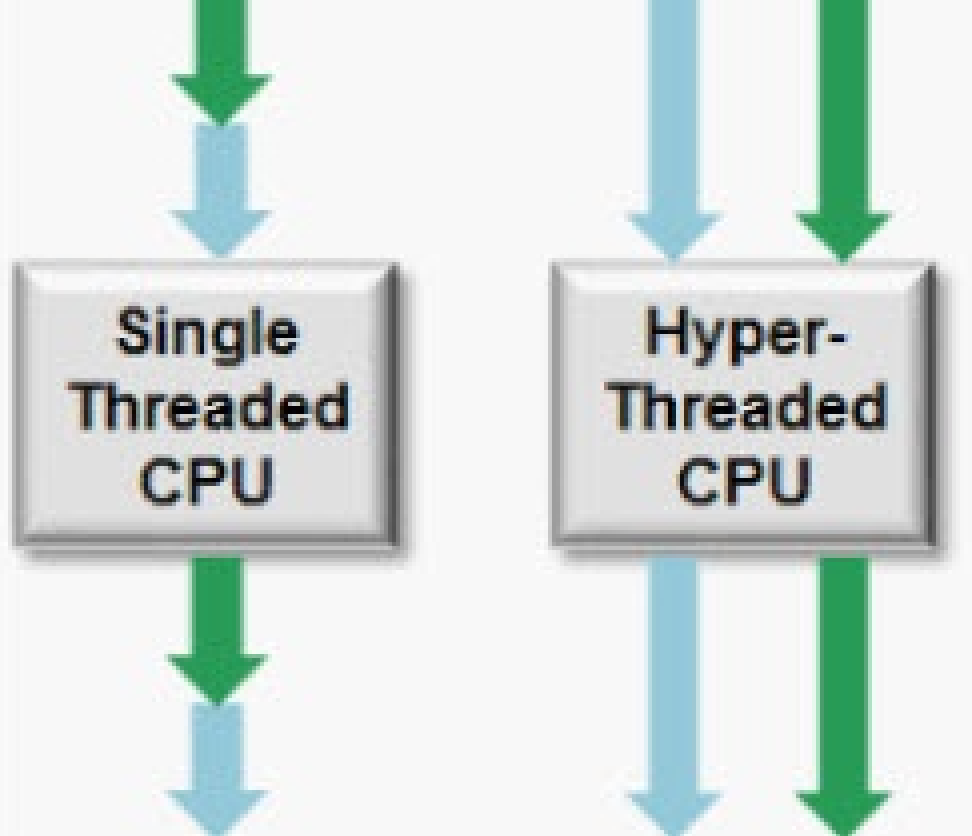

| CPU Cores | Individual processing units within a CPU. Each core can independently execute instructions. | Each core can execute a single thread simultaneously (with hyperthreading, this can be doubled). A higher core count generally translates to better performance for multi-threaded applications. |
| vCPUs (Virtual CPUs) | The number of virtual processors assigned to a virtual machine. | This determines the processing power available to the virtual machine. The vCPU count is ultimately limited by the number of physical cores available on the host. |
| Cores per Socket | Configures how vCPUs are presented to the guest operating system in terms of sockets and cores. | Impacts software licensing and, potentially, NUMA-aware application performance. It affects how the guest OS sees the virtual CPU configuration. |
| NUMA (Non-Uniform Memory Access) | A memory architecture where different memory locations have different access times depending on the CPU's location. | Proper NUMA configuration, often influenced by cores per socket settings, can minimize latency and improve performance for workloads that are NUMA-aware (most modern applications are). |
For a particular host, the configuration of virtual machines often involves setting a combination of "CPU" and "cores per socket." When creating a new virtual machine, the number of vCPUs assigned is divided by the "cores per socket" value to calculate the number of virtual sockets presented to the guest operating system. Many OVF (Open Virtualization Format) templates, from VMware and other vendors, commonly set the CPU configuration as two sockets with one core or two sockets with two cores, rather than the potentially simpler configuration of one socket with two or four cores. The software licensing considerations frequently dictate these choices.
The primary driver behind the ability to configure sockets and cores within VMware environments often revolves around software licensing. Many software packages base their licensing on the number of CPU sockets or cores allocated to a virtual machine. The flexibility offered allows administrators to meet licensing requirements without sacrificing performance. But, it's not only about licensing. Configuring vCPUs effectively also plays a crucial role in optimizing virtual machine performance and resource allocation.
Consider the scenario: You want to assign 4 vCPUs to a virtual machine. You have several configuration options:
- Four sockets with one core per socket.
- Two sockets with two cores per socket.
- One socket with four cores per socket.
The choice of configuration, for example, can influence how the guest operating system and applications perceive the available processing power. Choosing the optimal configuration can affect performance, and NUMA behavior of the guest operating system. For most environments, if you have 8 or less cores to allocate, keeping the default setting of cores per socket to "1" and adjusting the "CPU" count is best practice.
VMware's default setting is to push you towards one core per socket and increase only sockets. Extensive testing indicates that this configuration often provides the best performance. Turning off CPU hot add is also advised. For general-purpose virtual machines, the one core per socket approach typically works well. However, it is important not to assign more cores per socket (and in total, more vCPUs) to a virtual machine than the number of cores available on its physical NUMA node (physical socket). When a VM resides within a single physical NUMA node, it can utilize fast local RAM available on that node. This optimizes memory access and significantly impacts performance, especially for memory-intensive applications.
It's not a debate anymore. The recommendation from VMware is to set the cores per socket option to 1. This translates to each assigned vCPU presenting as a virtual socket to the guest operating system. The virtual sockets/cores per socket functionality provides the flexibility to assign multiple virtual CPUs to a VM. For hardware equipped with two quad-core processors, providing a total of 8 cores (disregarding Hyperthreading) can allow the assignment of up to 8 vCPUs to the guest OS, contingent on the ESXi license.
However, be cautious of outdated information. There's plenty of information that's old, regarding how to configure virtual machines. The "corespersocket" setting was intended to solve licensing issues. This is not the primary concern.
Consider a scenario: a virtual machine has 8 vCPUs and is running on a host with two sockets, each containing four cores. Configuring the VM to utilize 2 sockets with 4 cores each (2 x 4) might be preferable to other combinations. This configuration aligns with the physical NUMA topology of the host, optimizing resource utilization. Remember to keep the host's physical resources and software licensing in mind when deciding on your vCPU configuration. Aligning your cores and sockets to the host's physical configuration is generally considered the right approach, and only increase the number of sockets beyond the physical host capacity if the core per socket is set to one.
When assessing the optimal configuration, it's valuable to consider the nature of the workload. For general-purpose virtual machines, the "one core per socket" approach frequently delivers solid performance. However, highly specialized workloads, especially those that are NUMA-aware, may benefit from a more granular approach. In certain cases, especially with applications requiring high CPU utilization and the need for fine-tuning, setting the "cores per socket" option may be necessary. This allows administrators to control the NUMA affinity of a virtual machine and optimize memory access patterns, particularly important for applications designed to leverage NUMA architectures.
When you're planning to increase the CPU count for a virtual machine, the real difference lies in the approach. Assigning more cores or increasing sockets offers distinct advantages. The optimal approach generally depends on the workload and the specific requirements. The most important thing to remember is to align your configuration with the host's physical resources and licensing restrictions. By understanding the nuances of the "cores per socket" setting and how it relates to the number of vCPUs and physical resources, administrators can ensure that their virtual machines are configured for optimal performance.
By default, VMware will push you towards one core per socket, which generally works well for most workloads. However, remember to account for software licensing limitations and the underlying physical hardware. Properly configured vCPUs can significantly enhance virtual machine performance, minimize resource contention, and promote overall efficiency. Whether it's a matter of understanding the distinctions between CPU cores and sockets or grasping the impact of different configuration choices, optimizing the settings within a VMware environment is pivotal for achieving operational excellence and performance.
